The slot and tongue pattern on these Aluminum Cable Ties is used to ensure that the tag stays on your wire, cable, pipe, tubing or hose. Available in .016″ aluminum in multiple lengths and widths. Check out our Double Slot and Tongue Tags for larger wires, cables, etc.
.016″ Aluminum. Other materials available in some styles.
Interested in this product?
Request a Quote for this Product
| Style | Body Width |
Body Length |
Tongue Length |
Over-All Length |
Diameter Adjustment |
|---|---|---|---|---|---|
| 1601 | 3/4″ | 3″ | |||

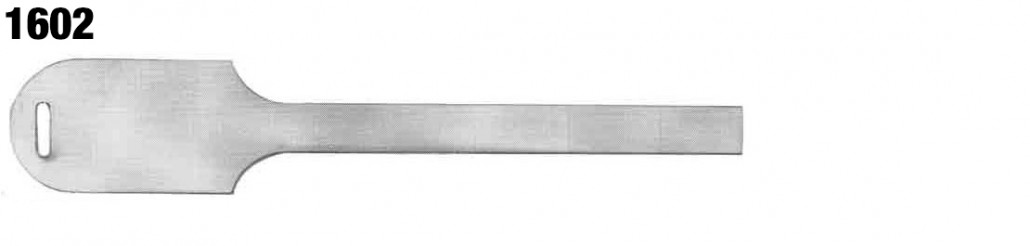

| 1602 | 7/8″ | 1 1/2″ | 3 1/16″ | 4 9/16″ | 1/2″-1 1/4″ |

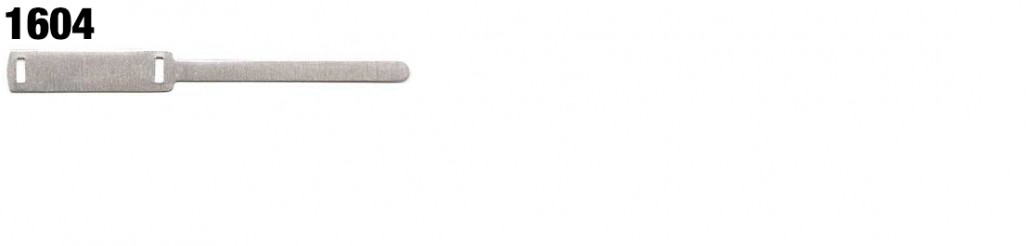

| 1604 | 3/8″ | 1 1/2″ | 2 1/8″ | 3 5/8″ | 23/32″-1″ |

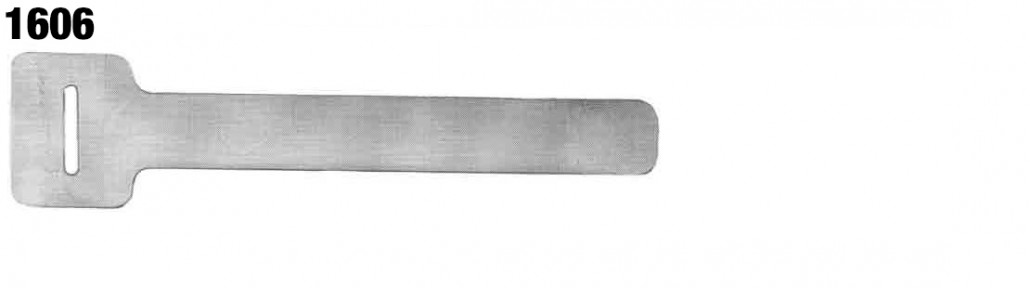

| 1606 | 1″ | 3/4″ | 3 1/4″ | 4″ | 11/64″-1″ |
| 1607 | 1 1/2″ | 1″ | 5″ | 6″ | 1/4″-1 1/2″ |

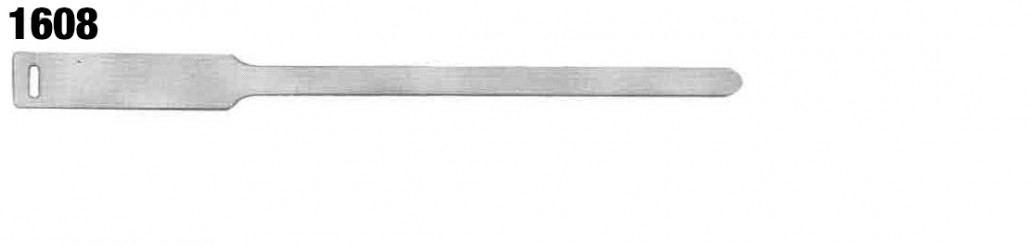

| 1608 | 3/8″ | 1 3/8″ | 3 3/16″ | 4 9/16″ | 7/16″-1 5/16″ |

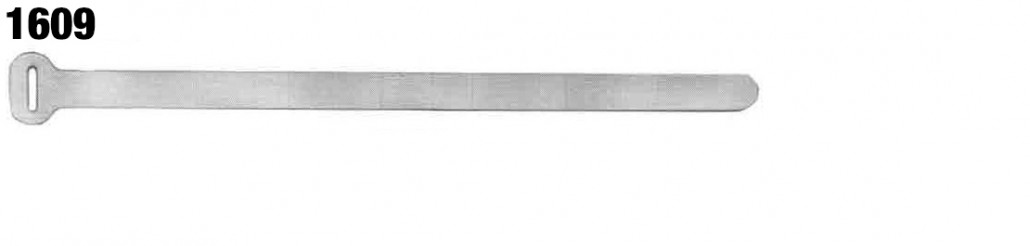

| 1609 | 1/2″ | 5/16″ | 4 11/32″ | 4 21/32″ | 1/8″-1 5/16″ |

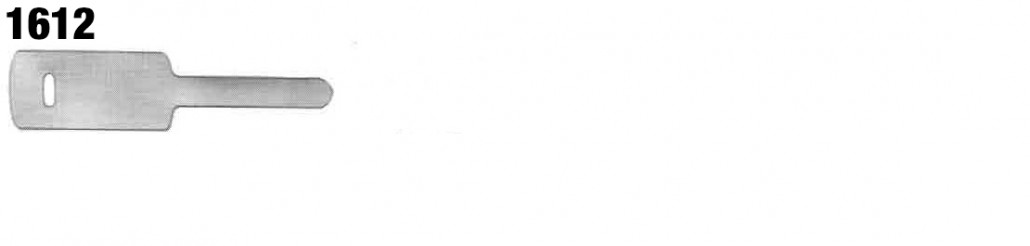

| 1612 | 1/2″ | 1″ | 1″ | 2″ | 5/16″-1/2″ |

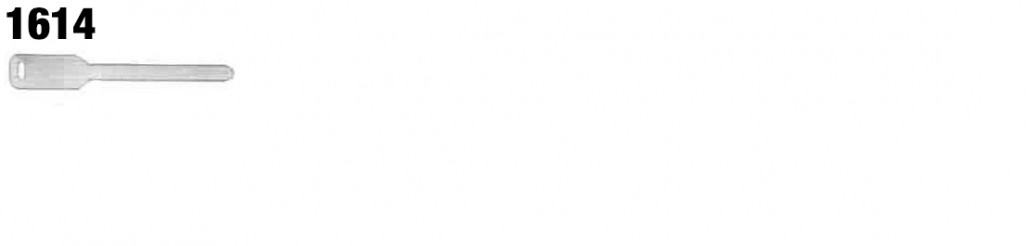

| 1614 | 1/4″ | 7/16″ | 15/16″ | 1 3/8″ | 1/8″-5/16″ |
| 1615 | 7/16″ | 5/8″ | 2 5/8″ | 3 1/4″ | 1/8″-7/8″ |

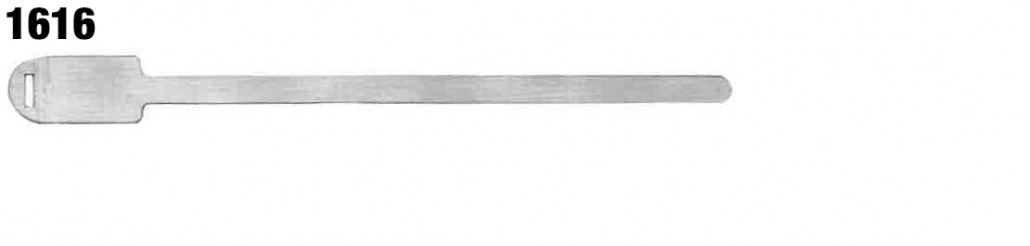

| 1616 | 7/16″ | 13/16″ | 3 11/16″ | 4 1/2″ | 5/16″-1 5/16″ |

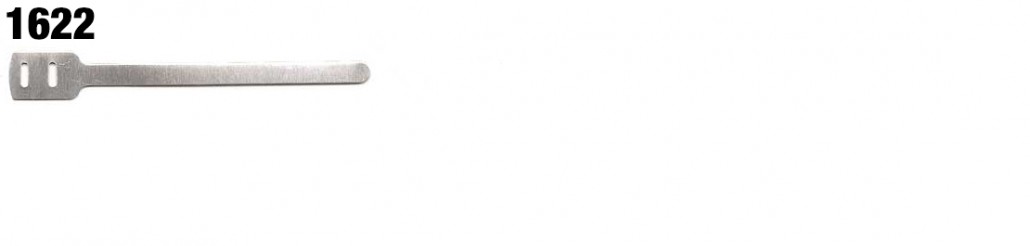

| 1622 | 7/16″ | 5/8″ | 2 5/8″ | 3 1/4″ | 1/8″-7/8″ |

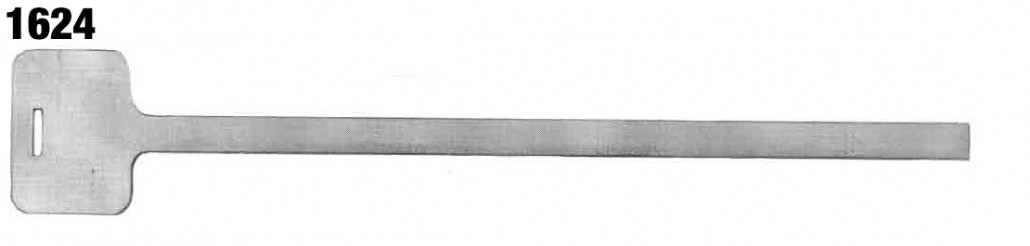

| 1624 | 1 1/8″ | 3/4″ | 5 1/4″ | 6″ | 5/16″-1 3/4″ |

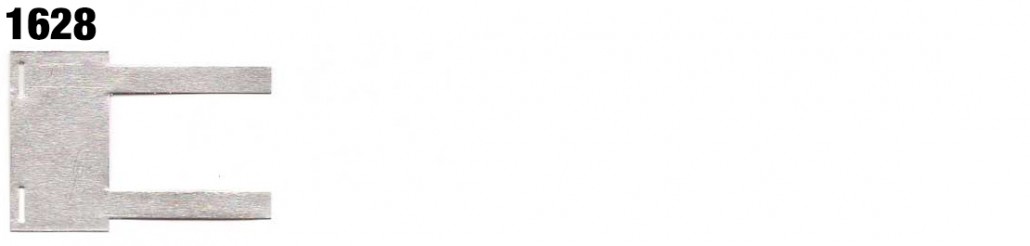

| 1628 | 1 5/8″ | 7/8″ | 1 1/2″ | 2 3/8″ | 1/4″-5/8″ |

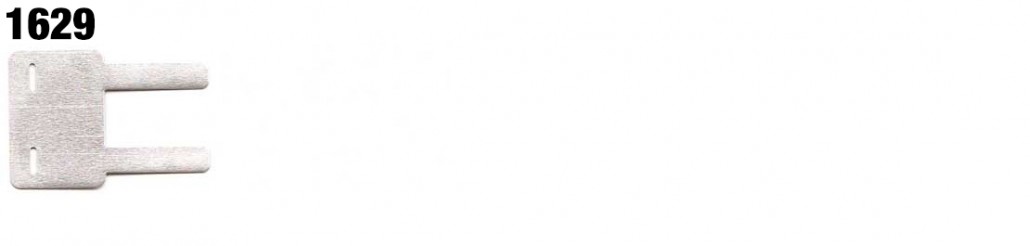

| 1629 | 1 1/4″ | 27/32″ | 15/16″ | 1 25/32″ | 21/64″-1/2″ |

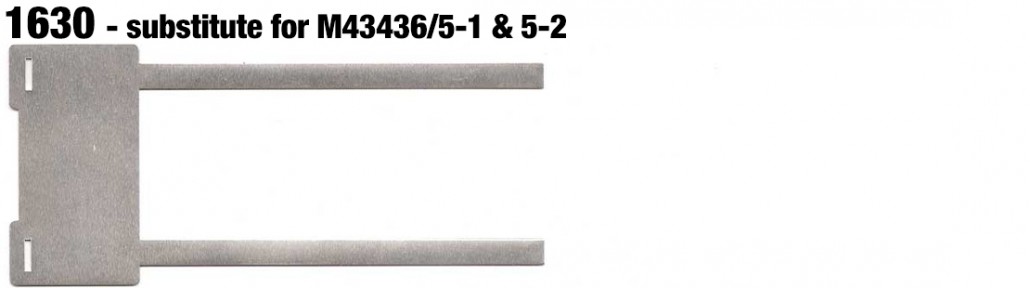

| 1630 | 2 5/16″ | 1 1/4″ | 3 7/8″ | 5 1/8″ | 5/8′-1 1/2″ |

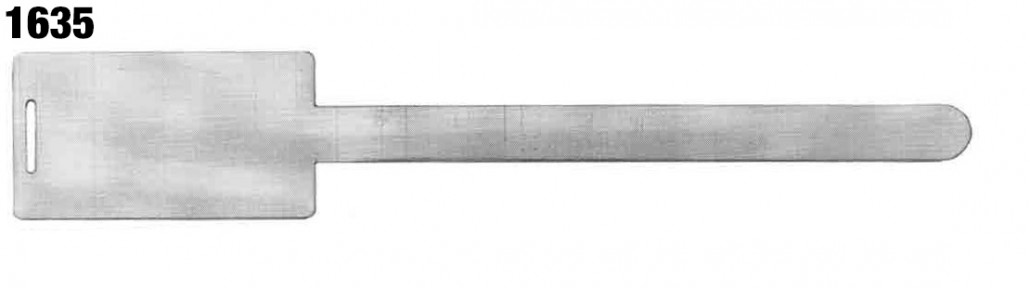

| 1635 | 1 1/8″ | 1 7/8″ | 4 1/8″ | 6″ | 1/2″-1 1/2″ |

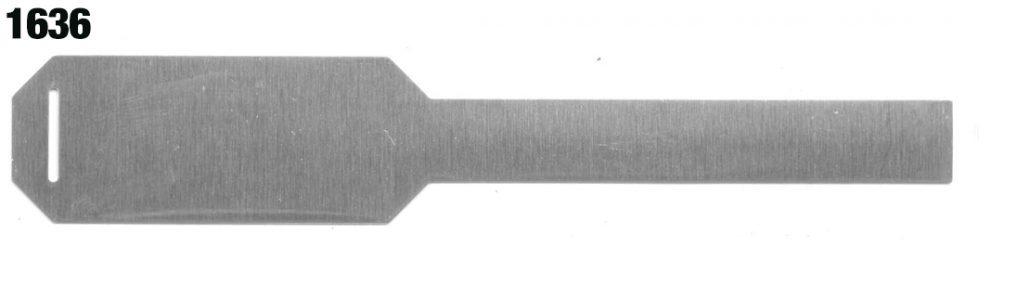

| 1636 | 1″ | 2″ | 3 5/8″ | 5 5/8″ | 3/4″-1 1/2″ |

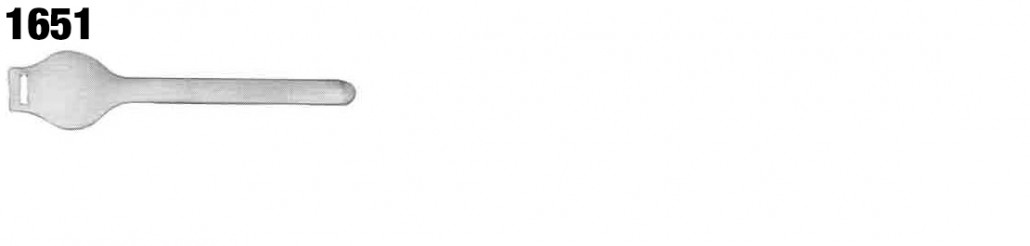

| 1651 | 1/2″ | 5/8″ | 1 1/2″ | 2 1/8″ | 1/4″-9/16″ |

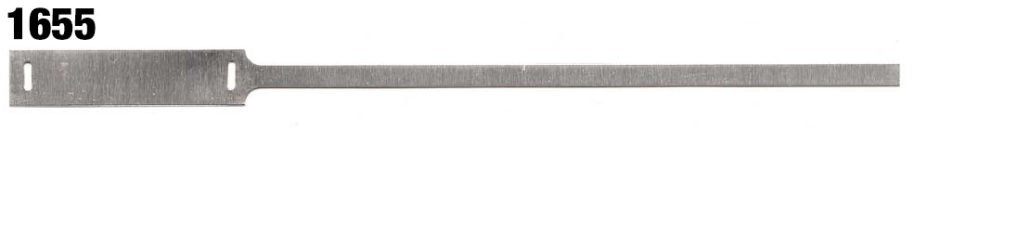

| 1655 | 1/2″ | 2 1/8″ | 5 7/8″ | 8″ | 5/16″- 2 1/4 |
| 1656 | 1/2″ | 5/8″ | 3 7/8″ | 4 1/2″ | 1/4″-1″ |
| STANDARD SIZE | Variable Size -Variations in body only |
|||||||
|---|---|---|---|---|---|---|---|---|
| Style | Body Width |
Body Length |
Tongue Length |
Overall Length |
Diam. Adj. | Body Width |
Body Length |
Tongue Length |

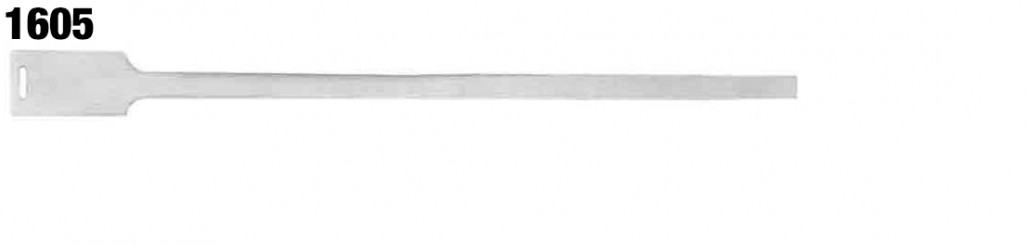

| 1605 | 1/2″ | 1″ | 5″ | 6″ | 3/8″-1/2″, 3/4″ | 5/8″-6″ | 5/8″-6″ | |

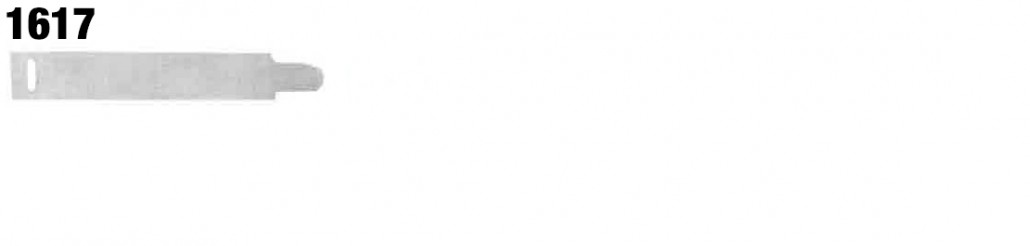

| 1617 | 3/8″ | 2″ | 3/8″ | 2 3/8″ | 41/64″- 43/64″ |
3/8″-1/2″, 3/4″ | 1″-4″ | 3/8″ |

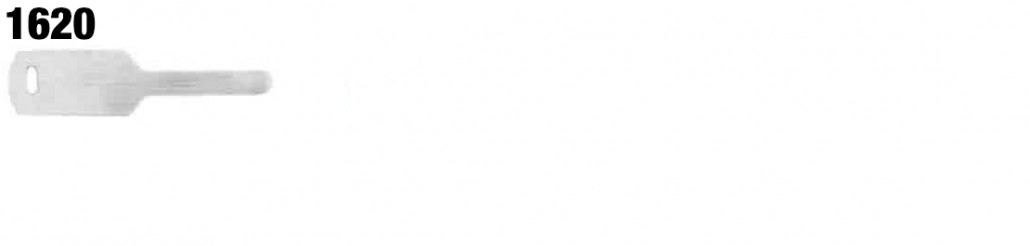

| 1620 | 1/2″ | 1″ | 1″ | 2″ | 5/16″-1/2″ | 3/8″-1/2″, 3/4″ | 5/8″-6 3/4″ | 1″ |
| 1625 | 1/2″ | 1″ | 1″ | 2″ | 3/8″-1/2″, 3/4″ | 5/8″-6″ | 5/8″-6″ | |

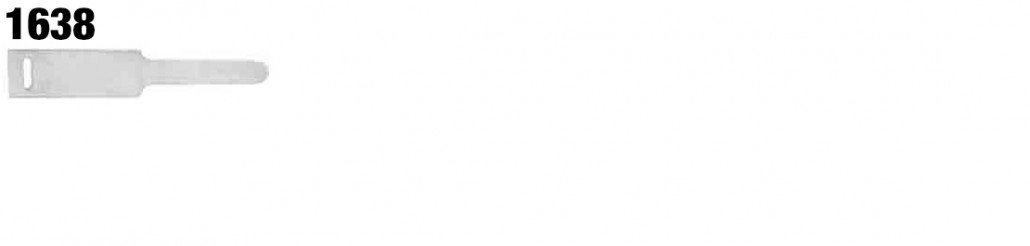

| 1638 | 3/8″ | 1″ | 1″ | 2″ | 5/16″-1/2″ | 3/8″ | 3/4″-1″ | 1″ |
| Weight | Special | Price | Price Per 100 | Price per 1000 | |||||
|---|---|---|---|---|---|---|---|---|---|
| Style | Description | per 1000 | Charges | Each | 100 | 500 | 1000 | 5000 | 10000 |
| 1601 | Double Slot Double Slot | 4 | A,B,C | 14.00 | 11.00 | 84.00 | 80.00 | 76.00 | |
| 1602 | Slot and Tongue | 4 | A,B,C | 16.00 | 13.00 | 105.00 | 102.00 | 99.00 | |
| 1604 | Double Slot | 4 | A,B,C | 10.00 | 8.00 | 63.00 | 60.00 | 57.00 | |
| 1605 | Slot and Tongue | 3 | A,B,C | 11.00 | 9.00 | 73.50 | 71.00 | 69.00 | |
| V1605 | Variable Slot and Tongue | 3 | A,B,C,D | 14.00 | 11.00 | 90.30 | 88.00 | 85.00 | |
| 1606 | Slot and Tongue | 4.2 | A,B,C | 16.00 | 13.00 | 105.00 | 102.00 | 99.00 | |
| 1607 | Slot and Tongue | 17 | A,B,C | 26.00 | 21.00 | 168.00 | 163.00 | 158.00 | |
| 1608 | Slot and Tongue | 3 | A,B,C | 10.00 | 8.00 | 63.00 | 61.00 | 59.00 | |
| 1609 | Slot and Tongue - Aluminum | 3 | A,B,C | 10.00 | 8.00 | 63.00 | 61.00 | 59.00 | |
| 1609 | Slot and Tongue - Brass | 10.4 | A,B,C | 18.00 | 14.00 | 115.50 | 112.00 | 109.00 | |
| 1612 | Slot and Tongue | 2 | A,B,C | 8.00 | 6.00 | 42.00 | 41.00 | 40.00 | |
| 1614 | Slot and Tongue | 1 | A,B,C | 8.00 | 5.00 | 31.50 | 31.00 | 30.00 | |
| 1615 | Slot and Tongue | 2 | A,B,C | 8.00 | 6.00 | 42.00 | 41.00 | 40.00 | |
| 1616 | Slot and Tongue | 3 | A,B,C | 10.00 | 8.00 | 63.00 | 61.00 | 59.00 | |
| 1617A | Slot and Tongue - Aluminum | 4 | A,B,C | 11.00 | 9.00 | 73.50 | 71.00 | 69.00 | |
| V1617A | Variable Slot and Tongue - Aluminum | 4 | A,B,C,D | 13.00 | 10.00 | 81.90 | 79.00 | 77.00 | |
| 1617B | Slot and Tongue - Brass | 6.3 | A,B,C | 15.00 | 12.00 | 94.50 | 92.00 | 89.00 | |
| V1617B | Variable Slot and Tongue - Brass | 6.3 | A,B,C,D | 16.00 | 13.00 | 102.90 | 100.00 | 97.00 | |
| 1620 | Slot and Tongue | 2 | A,B,C | 14.00 | 11.00 | 84.00 | 81.00 | 79.00 | |
| V1620 | Variable Slot and Tongue | 2 | A,B,C,D | 16.00 | 13.00 | 100.80 | 98.00 | 95.00 | |
| 1622 | Double Slot | 2 | A,B,C | 6.00 | 5.00 | 42.00 | 40.00 | 38.00 | |
| 1624 | Slot and Tongue | 4 | A,B,C | 21.00 | 17.00 | 136.50 | 132.00 | 128.00 | |
| 1625 | Slot and Tongue | 2 | A,B,C | 11.00 | 9.00 | 73.50 | 71.00 | 69.00 | |
| V1625 | Variable Slot and Tongue | 2 | A,B,C,D | 15.00 | 12.00 | 98.70 | 96.00 | 93.00 | |
| 1628 | Double Slot Double Tongue | 4 | A,B,C | 21.00 | 17.00 | 136.50 | 130.00 | 124.00 | |
| 1629 | Double Slot Double Tongue | 3 | A,B,C | 20.00 | 16.00 | 126.00 | 120.00 | 114.00 | |
| 1630 | substitute for M43436/5-1 & 5-2 | 4 | A,B,C | 21.00 | 17.00 | 136.50 | 130.00 | 124.00 | |
| 1635 | Slot and Tongue | 13 | A,B,C | 21.00 | 17.00 | 136.50 | 132.00 | 128.00 | |
| 1636 | Slot and Tongue | 13 | A,B,C | 21.00 | 17.00 | 136.50 | 132.00 | 128.00 | |
| 1638 | Slot and Tongue | 1 | A,B,C | 9.00 | 7.00 | 52.50 | 51.00 | 49.00 | |
| V1638 | Variable Slot and Tongue | 1 | A,B,C,D | 9.00 | 7.00 | 56.70 | 55.00 | 53.00 | |
| 1651 | Slot and Tongue | 1 | A,B,C | 11.00 | 9.00 | 73.50 | 71.00 | 69.00 | |
| 1655 | Double Slot | 3 | A,B,C | 336.00 | 319.00 | 303.00 | |||
| 1656 | Slot and Tongue | 1.5 | A,B,C | 10.00 | 8.00 | 63.00 | 61.00 | 59.00 | |
A $25 Make Ready charge will be added to all Tongue & Slot Stamped Tag orders when fewer than 500 tags.
