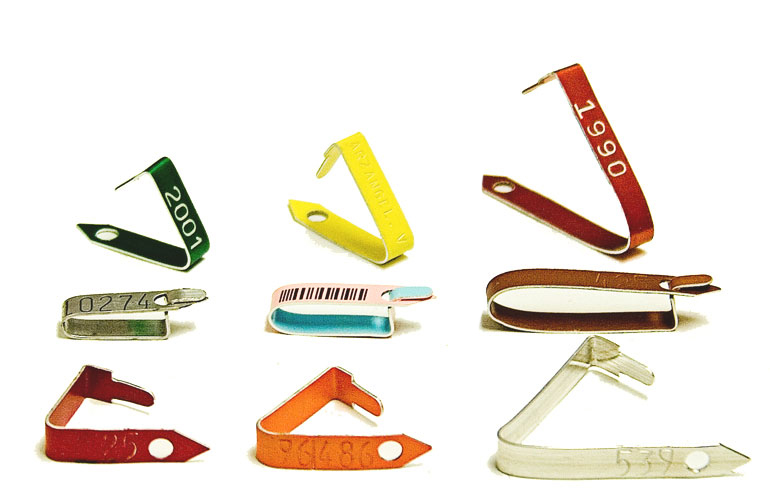

Tab End Wing Bands – Style 898

tab end 898 wing bands

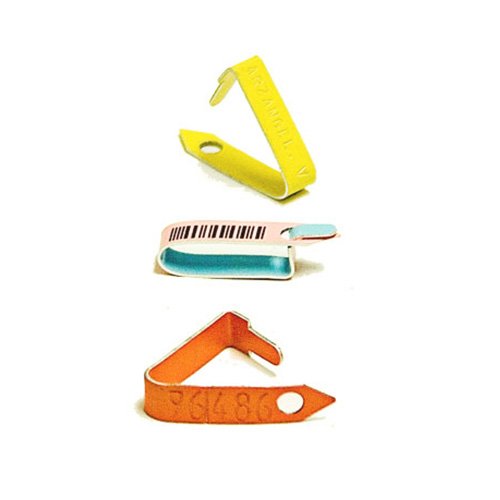

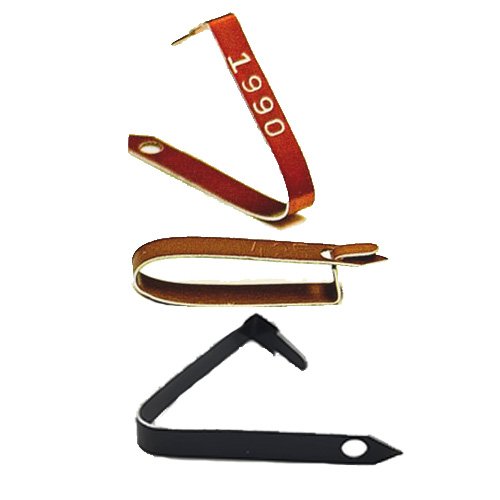

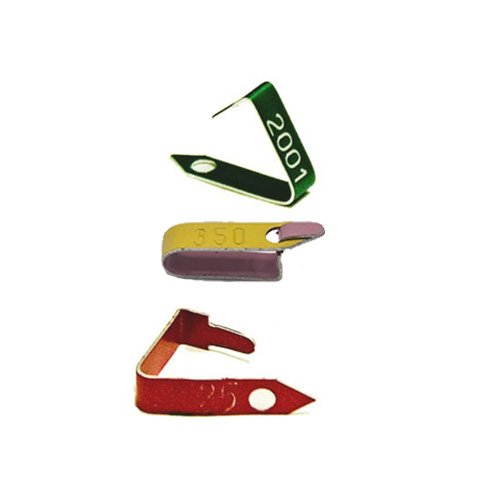

Size 898 Size 2.75 898 Size 3 898 Size 4 How to Read Barcodes
Approx. Inside Dimension When Closed 3/16″ x 1/2″ 3/16″ x 5/8″  3/16″ x 1″
Stamped Yes Yes Yes
Laser-Etched Characters Yes Yes No
Laser-Etched Barcodes (Linear) Yes Yes No 1D Scanner or Smart Phone App
Fusion Marking (Characters, Linear & 2D Barcodes) No Yes No 2D Scanner or Smart Phone App

A pre-formed band that’s fast and secure. Apply completely by hand – No applicator required!

Tagging Hints: Push band through web of wing directly at the elbow joint, being careful not to puncture flesh or tear the tendon at the leading edge of the wing. After the band is inserted through the wing, with thumb and forefinger, close the band until the tab is inserted through the hole. Now bend the tab and point down.

Stamping Limits

Fill the squares below to design your stamping. Each cell is a character. Spaces and punctuation counts as one character. Your stamping will be made as large as possible, but keep in mind that the more letters you have, the smaller the characters will be. Green: Standard Setup Fee, Orange: Extensive Setup Fee
890 stamping limits

Options Available
  • Stamped characters, logos, and paint fill

stamped characters logos

  • Laser-etched characters or 2D barcodes (available on red, blue, green, purple, orange, brown, and black anodized aluminum).
  • Laser etched linear barcodes (only available on blue, green, and black anodized aluminum).

laser etched letters barcodes logos

  • 898-3 can be fusion marked with characters or barcodes (fusion marked barcodes only available on pastel colored aluminum).

fusion barcodes characters

Get your wing bands 2D barcoded! These hold much more information than a linear barcode. Also available, different size fonts for numbering and lettering.
barcoded 898 fusion

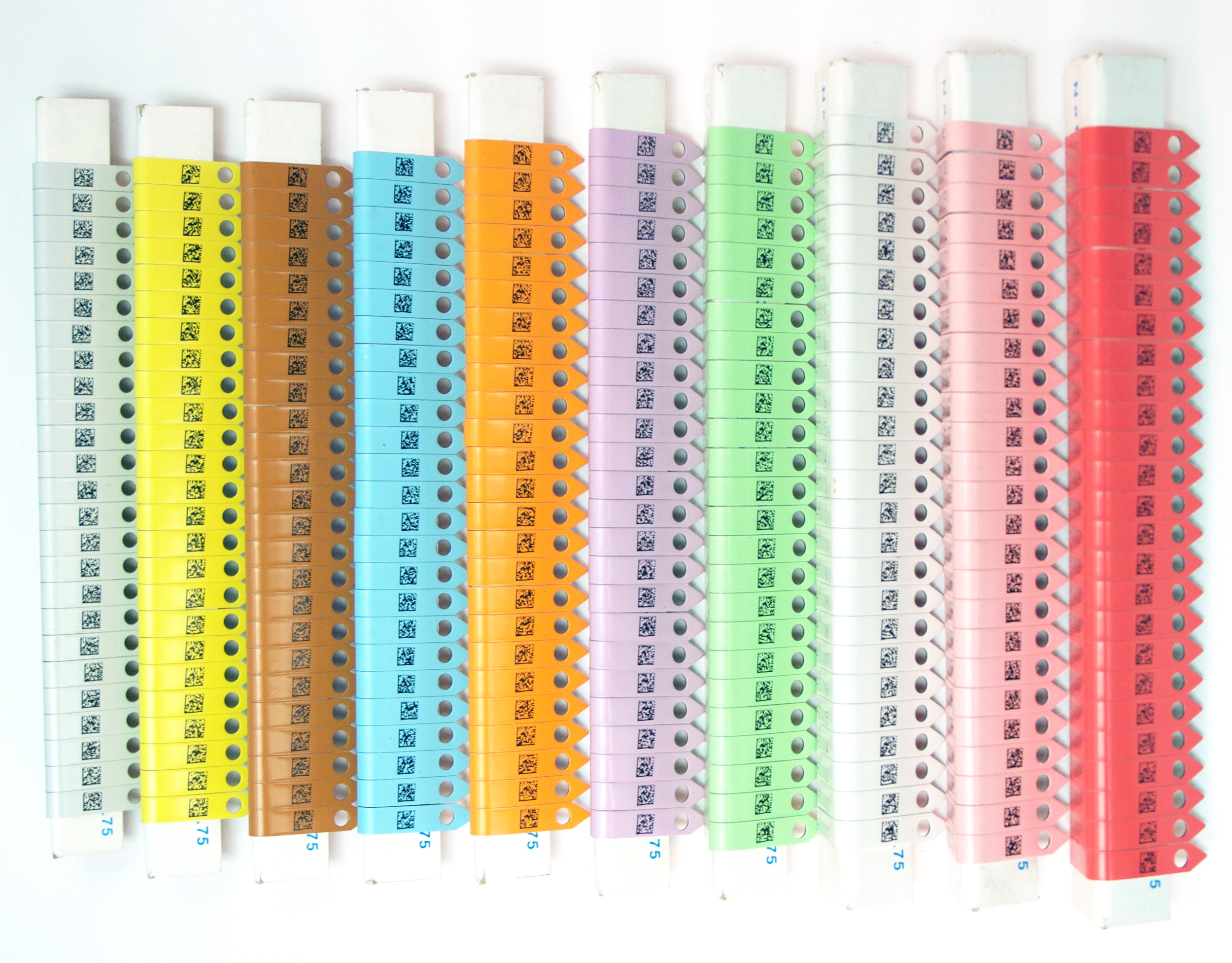

Barcodes on Available Pastel Colors (Fusion Marked)

linear barcoded wing bands anodized colors

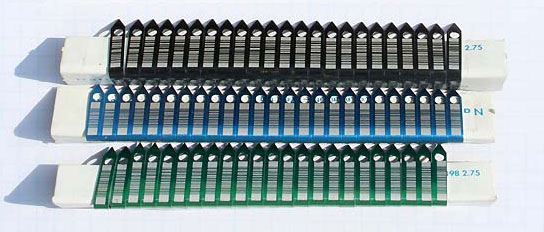

Barcodes on Available Anodized Colors (Laser Etched)

USES: Poultry Wing Band

Material: 020″ Aluminum 13/64″ wide.

**NOT AVAILABLE IN PLAIN ALUMINUM.**

Red, Light Red, Blue, Light Blue, Green, Light Green, Yellow, Orange, Light Orange, Pink, Light Pink, Purple, Light Purple, Brown, Light Brown, Black, Gray, White, Neon Green, Gold

Note: Stamping shows up better on darker colors.

RD LT
RD		 BL LT
BL		 GR LT
GR
YL OR LT
OR		 PK PU LT
PU
BR LT
BR		 BK GY WH NG
GL

Please note – Not all colors available at all times. Please indicate second color choice or contact us for current stock.
Our material is two sided, the back side will be a different color than the front side. You may choose the color for the front side, but not the back.

Up to 6 digit stamped consecutive number. Special stamping available.
Stamping Limits:

1 line of 5 – 1/8″ characters
1 line of 7 – 3/32″ characters
2 lines of 10 – 1/16″ characters
3 lines of 12 – 3/64″ characters*
(One less character on Size 2.75, One more on Size 4)

*Double-Setup charge on any line that exceeds character lengths above, or any tag with 3 lines.

All numbering will include preceding zeros. (Example: 001-100 instead of 1-100).

New Scanner Options Coming Soon!

More about Scanners & Imagers:
The older technology bar code scanners sent out a red thin beam of light back and forth across the bar code and measured the reflections of that light back as it went across the bar code (contrast based). Since people still call these bar code scanners when in reality they are imagers, it can be confusing. Either term works though, scanner or imager.

2d barcoded wing bands fusion 898

2D Barcoded Wing Bands

Stamped vs. Paint-Filled vs. Laser Etched vs. Barcoded Fusion
Linear vs. 2D Barcode
Wing Banding Instructions

2d barcoded wing bands

Bar Codes Available

APPLICATOR: None required — Applied by hand.

Interested in Product?

Fill out the form below and we will contact you as soon as possible.

    Your Name*

    Your Email*

    Your Message

    Billing Address

    Shipping Address (Type "Same as Billing" if applicable)

      *Required Field

      First Name*

      Last Name*

      Email*

      Style Number*

      Material*

      Height

      Width

      Quantities to Quote:*



      Description of what you would like, what you are using them for, and any other important information. (Numbers, colors, bar codes, holes, color fill, etc.)*

      Have you ordered from us before?

      YesNo

      If yes, what is your Account Number?

      How did you hear about us?*

      Shipping Address* (by including this we will add shipping charges to your quote)

      File Upload: Any sketches or pictures that you would like to send us.

      Weight Special EACH PRICES WITH VOLUME DISCOUNTS
      StyleDescriptionper 1000Charges11002003004005006007008009001000500010000
      898Tab-End - Sizes 2.75, 3, 3.5*, 41.5 lbsB,E,F0.2190.1640.1460.1360.1110.1070.1050.1030.1010.0850.0820.079
      BC1Laser Bar Code & numberB,E,F0.0000.2900.083
      LC1Laser: 1 line on one sideB,E,F0.0000.1980.054
      LC2Laser: 1 line on two sidesB,E,F0.0000.2550.078
      LC3Laser: 1 line on one side and 2 lines on other sideB,E,F0.0000.3840.152
      FBCFusion Bar Code & numberB,E,F0.0000.2900.083
      FC1Fusion: number one side & 1 line of text other side **B,E,F0.0000.0700.050
      FC2Fusion: number one side & 2 lines of text other side **B,E,F0.0000.0940.059

      *$200.00 die alteration charge if the order is under 10,000 quantity.
      **Fusion available for 898-3 at a 500 piece minimum.
      Special Charges could apply to these tags.
